ThermalParallel

The data needed to execute the tutorials below can be loaded here: exampleThermalParallel.zip

This use case aims to validate the methodology POD + ECM for nonlinear transient thermal computations in parallel with distributed memory, see Section Publications, article 2.

No optional prerequisite: notice that even if the HFM snapshots are computed here using Z-set, the ROM do not require any Z-set license to be run.

Features: parallel with distributed memory

The physical setting, workflow and reduction strategy are the same as in the tutorial ThermalSequential, hence we only point out the differences here: the parallel setting and the dimensionlality of the test (3D), see Fig. 19. The problem still features a nonlinear material, convection heat flux and radiation boundary conditions.

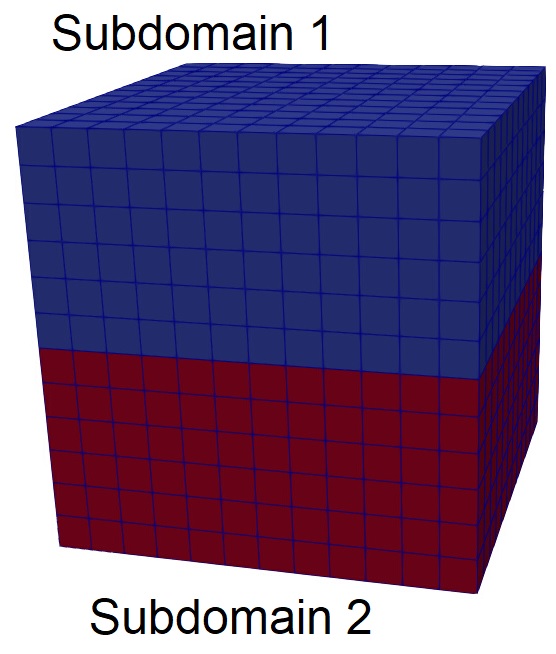

Fig. 19 Mesh splitted in two subdomains.

Results

In Fig. 20, the quality of the reduced model is illustrated by comparing it to the high-fidelity reference. The comparison is done on the temperature field.

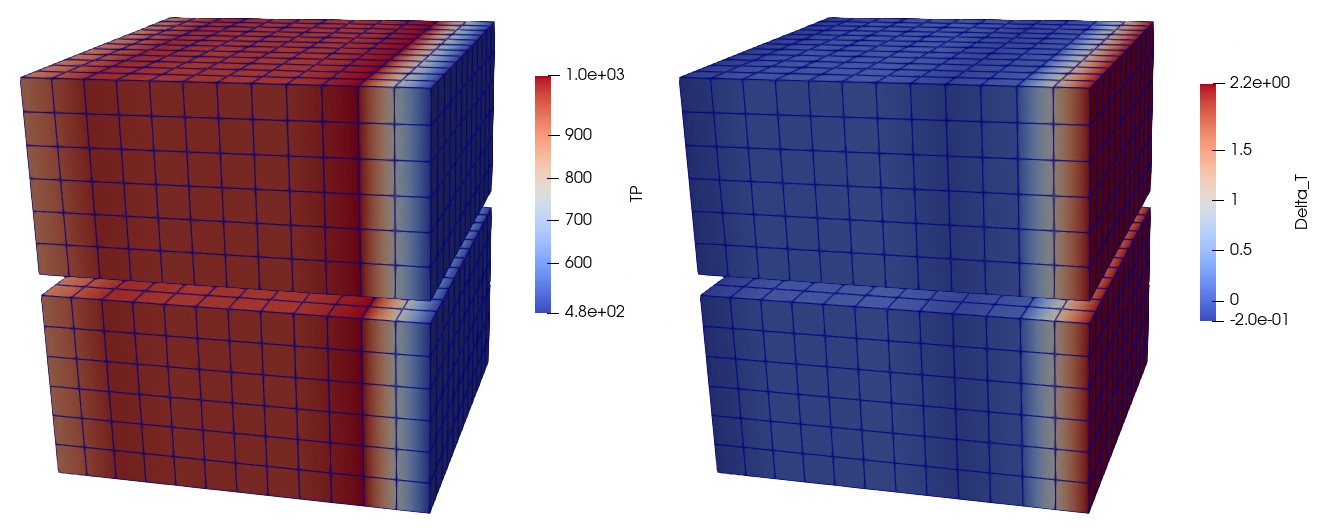

Fig. 20 Illustration of the ROM accuracy on the temperatre T (left) HFM, (right) pointwise difference between the ROM and the HFM. The mesh is cut along the boundary between the two subdomains.
